Introduction

DYJ belt filter press is carefully developed by our company in combination with the advanced belt filter press abroad. It is widely used in juice extraction and environmental protection process of fruits and vegetables. The utility model has the advantages of energy-saving, automatic feeding and discharging, continuous operation, full pressure filtration, and extremely low juice content of the filtering residue.

The main part of the machine is composed of frame, upper and lower drive shafts, deceleration drive assembly, filter press belt, filter press belt washing device, feed device component, distribution device, tension device, belt deviation correction device, pressurization device, slag scraping device, safety protection device, pneumatic and electrical control components, cleaning water filtering device, etc.

In addition to being widely used in food and beverage processing enterprises, the juicer can also be used for pressure filtration and dehydration of powdery materials in the chemical industry, environmental protection, light industry, and other industries.

Feature and Advantage

The utility model has the advantages of energy-saving, automatic feeding and discharging, continuous operation, full pressure filtration, and extremely low juice content of the filtering residue.

Production Process

The refined raw materials (solid-liquid mixture) are continuously pumped into the hopper by the progressing cavity pump (the bandwidth occupied by the material can be adjusted) and distributed evenly by the distributing roller. A large amount of water is slowly squeezed out of the lower wedge to form a squeezable filter cake, In the press area, a pressure roller with an “L” shaped strip presses out the water and ensures that the water flows out quickly on both sides. The diameter of the press roller at the back is decreasing, and the filter belt is in the shape of “S”, which produces a shear force of decreasing surface pressure, which ensures the dehydration effect. To further increase the rate of dehydration, a pressure roller is added to generate linear pressure and peripheral pressure. After dehydration, the filter cake is scraped by a wear-resistant scraper. The two filter belts are continuously washed by the high-pressure nozzle so that the filter belt can keep the effect of juice. Spray washing water through the reflux pump through the arc filter screen automatic filtration, slag discharge, recycling use, energy saving. The filter belt is made of nylon yarn warp and weft.

Specification

For example:

Product name: fruit and vegetable DYJ belt filter press.Model： DYJ-3

Production capacity：1~3T/h

Total power：20.38kw

Outline size：3230×1600×2000mm

Host power：22kw

Compressed air oxygen consumption：1m³/h

Feed height：1900mm

Main drive motor speed：8r/min

Linear velocity of filter belt：5m/min

Compressed air pressure：0.7mpa

Application

It is widely used in juice extraction and environmental protection process of fruits and vegetables and it can also be used for pressure filtration and dehydration of powdery materials in the chemical industry, environmental protection, light industry, and other industries.

Service

（1）Reply in 24 hours

（2）Providing professional solutions

（3）Every product will be tested before the delivery

（4）Delivery on time and excellent after-sale service

（5）High quality, reliable price

FAQ

Q： What’s your product name?

A： High-quality Factory selling fruit and vegetable DYJ belt filter press.

Q： Why should I choose your company?

A：(1)  24hour/7day after-sales service support ;

• Guidance of installation and commissioning on-site can be provided by factory-trained technicians or local Authorized Service Center;
• Technical training for customers in our company factory or working site;
• Every product will be tested before the delivery.
• Delivery on time and excellent after-sales service.

Q： How to solve the service after the sale?

A： Solve any problem online. Supply your English manual book and technical support, maintain and install video to help you solve the problem.









Inquire

FRUIT PULPER (low speed)

APPLICATION:

for peeling, seeding, pitting, beating and refining of tomatoes, strawberries, blueberries, raspberries, mulberries, bananas, hawthorn, apricot, pumpkin and other fruit and vegetable material.

WORKING PRINCIPLE:

DJ model pulping machine：Through belts’ drive, the motor makes the scraper rotate on high-speed which installed at the spline. After the broken fruit through the feeder into the machine, the Pulp disk put material evenly to the sieve and scraper department. As the function of rotation and lead angle, the material moves down to the exit of cylinder, which the trajectory is spiral, and the material was wiped broken. At the centrifugal force between the scraper and the sieve, the juice and paste move to the next procedure through the sieve. the skin and seeds expel from slag outlet to achieve the process of separation and pulping.

FEATURES

• According to the material characteristics and processing capacity, you can choose single channel, double channels, three channels structure.
• The internal diameter of screen customized according to the customer or the specific project requirements, so as to get different quality requirements of the product.
• The end of scraper can increase the PTFE film or PP brush and other auxiliary components to meet the needs of different materials and products.
• Paddle speed can be frequency controlled.

FRUIT PULP FINISHER(high speed)

APPLICATION:

The machine is designed to separate the solids from the liquid phase, suiting all kinds of processing, “Hot/ Cold-Break”.

YGT- HDJ type is applicable to pulp the tomatoes, sea-buckthorn, raspberry, gooseberry, medlar, strawberries, apples, pears after crushing or soften hawthorn, jujube after pre-cooked.

WORKING PRINCIPLE:

Variable speed turbo extractors separate the peels and seeds from the pulp, extract and refine the juice.The machine is equipped with rotary blades which gently push the product through a cone-shaped screen.The gap between the rotor and the cone-shaped screen is easily adjustable.The characteristics of the refined juice and the moisture content in the wastes can be accurately controlled. The results and capacity can vary depending on the nature, size and temperature of the incoming product.There are various types of screen perforation sizes chosen according to the products requirements.

FEATURES

• High capacity performance: efficient space and energy utilization
• High quality of product: more fine and smooth. Clear seed and skin separation
• Flexible structure: gap between blade and sieve adjustable, pipe connection
• Reduced down-time: rapid and thorough cleaning of finisher screen
• Maximum sanitation: clean-in-place sprayer on the complete length of machine

TECHNICAL PARAMETER:

Capacity: 500kgs-15000kgs/h

Type: high speed at 1440rpm, low speed at 860rpm

Power 4kw-30kw as per different capacity

Structure: single chamber, or double chamber assemble

Sieve: 0.6mm, 0.8mm, 1.0mm, 2.0mm as request

Material: SUS304









Inquire

Introduction

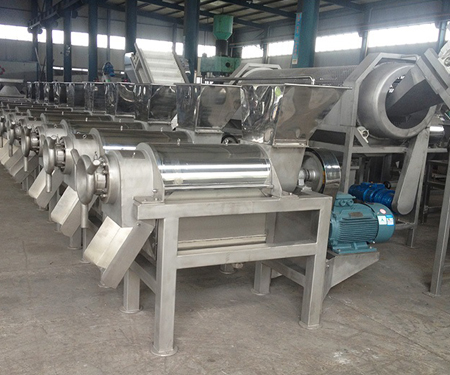

LZ screw juicer is mainly used for pressing and extracting fruits and vegetables such as berries, nuts, and rhizomes. It can also be used for pressing and extracting fruits and vegetables after de-nucleation and softening.

The machine is mainly composed of motor, frame, front support, pressing screw, combination device of the filter screen, juicer, rear support, slag scraping, and discharge components. The left end of the press screw spindle is supported in the rolling bearing, the right end is supported in the handwheel bearing seat, and the motor drives the machine through a pair of V-belt pulleys.

Feature and Advantage

It has the characteristics of energy-saving, continuous working, full pressure filtering, and very low juice content of filter residue.

Production Process

The main part of the machine is the pressing screw. The bottom diameter of the pressing screw gradually increases along the direction of the slag outlet, and the screw pitch gradually decreases. When the material is pushed by the screw, the material is pressed because the volume of the screw cavity on the pressing screw reduces in turn. The rotation direction of the spiral spindle is clockwise from the feed hopper to the slag chute. When the material enters into the feed hopper, it is pressed under the push of the pressing screw, and the squeezed fruit and vegetable juice flows into the juicer at the bottom through the filter screen, while the fruit and vegetable residue is discharged through the gap formed between the pressing screw and the conical part of the pressure regulating head. Changing the size of the clearance can change the juice yield, but if the clearance is too small, under the strong extrusion of the pressing screw, some particles in the slag may be extruded together with the juice through the filter screen. Although the juice yield is increased, the quality of the juice is relatively decreased (pulp and pulp fiber in the juice are relatively increased). The size of slag clearance shall be determined according to the specific production process requirements of customers.

Specification

Application

LZ screw juicer is mainly used for pressing and extracting fruits and vegetables such as berries, nuts, and rhizomes.

It can also be used for pressing and extracting fruits and vegetables after de-nucleation and softening.

Service

（1）Reply in 24 hours

（2）Providing professional solutions

（3）Every product will be tested before the delivery

（4）Delivery on time and excellent after-sale service

（5）High quality, reliable price

FAQ

Q： What’s your product name?

A： High-quality Factory selling fruit and vegetable spiral juicing machine.

Q： Why should I choose your company?

A：(1)  24hour/7day after-sales service support ;

• Guidance of installation and commissioning on-site can be provided by factory-trained technicians or local Authorized Service Center;
• Technical training for customers in our company factory or working site;
• Every product will be tested before the delivery.
• Delivery on time and excellent after-sales service.

Q： How to solve the service after the sale?

A： Solve any problem online. Supply you an English manual book and technical support, maintain and install video to help you solve the problem.









Inquire

Equipment Description:

Multi- juice extractor is able to process several varieties of whole fruit of any size, such as: pineapples, passion fruit, guavas, aloe, melons, papayas, mangosteen and citrus. With good peeling function, and clear juice separation. Wide application and efficient production.

Multi- juice extractor is very reliable because of their design and construction, they need low maintenance charges that guarantee them a very long lifetime.

Working Principles :

－ A horizontal knife fixed between two counter rolling cylinders cuts the fruit into two halves. Then the half fruit is dragged by the rolling cylinders along the squeezing channels: here the juice comes out and is filtered through a perforated stainless-steel sheet. The channels have different profiles according to the variety of fruit being processed.

－ The squeezing pressure on fruit can be easily adjusted according to their assortments, ripening and the thickness of the peel, in order to get the maximum output of juice without compromising the quality.

－ The peels are ejected exhausted by two proper stainless-steel chutes and conveyed to the peel silo.

－ The juice is collected by underlying tank and then is pumped to juice finisher.

－ The squeezing and conveying of juice is done in closed chambers in order to avoid the contact with air.

－ The machine can be easily opened and disassembled for a complete washing.

Technical data：

Full made of SUS304 stainless steel.

Required power: 5.5 kw, speed adjustable.

Working capacity: up to 3-5 tons/hour.

Could match washing system with piping and nozzles.
