Introduction

Plant:  Dairy milk process machinery
The milk processing plants include a range of milk processing equipment to perform or handling the various operations of milk like heat treatments, pasteurization, homogenization, and some others. The milk plants include fluid milk production, cheese production, yogurt production, ice cream production to make a huge variety of milk products like cheese, butter, cream, skimmed milk, yogurt, toned milk or double toned milk, and much more.

• Milk Tanks : The milk tanks are the prime components in any milk processing plants that are used to store raw milk, skimmed milk, or cream.
• Pasteurizers: Pasteurization is the process of heat treatment of a product to reduce enzymatic activity and kill pathogenic bacteria. This process can be done by using pasteurizers The main purpose of pasteurization in dairy plants is to make the product safe for use and to extend product shelf life.
• Separators: After pasteurizers, the separators come as the third main equipment in milk plants that ensure excellent products quality and high performance in milk skimming by preventing intake of destructive air.
• Homogenizers: At last, the homogenizer helps to achieve a different variety of products, improves the texture, taste, and viscosity of cream or juice-based drinks, and prevents a cream line and sedimentation in the milk products.

Feature and Advantage

The dairy milk plant contains the following equipment:

Milk Chilling Tank

Ingredient / Sugar melting tank

Blending tank/Fermentation tank

Separator/Filter

Homogenization

Pasteurization/UHT sterilizer

Filling Line

Production Process Dairy Process Plant

Specification

Application

Dairy production line:

• Fresh milk /Yoghurt production line
• Ice cream/ Whip Cream processing plant
• Milk Beverage/ flavored milk processing Plant
• Almond, peanut, soy milk, etc production line

Service

（1）Providing professional solutions as the project consultant

（2）cooperate with top manufacturers to provide reliable products for customers

（3）we have our own engineer team focused on mechanical design and solve various mechanical problems

（4）we have a site engineer team focused on project installation and commissioning

（5）Each equipment will be tested before the delivery

（6）Long-term accessories supply

FAQ

1:  Q： What’s this plant suitable for?

A： Fresh milk, yoghurt, cream, soybean milk, etc dairy process

2:  Q： How about the investment budget?

A： We need to know the end product type and package for the market, Raw material feeding, capacity for the plant then help u analyze the feasibility.

3:  Q： How about the after-sale service?

A： Our own engineer guide and match with the local engineer team.

Inquire

Introduction

Soymilk is made by soaking soybeans in water overnight, then grinding the beans with water added during grinding. The resulting slurry is boiled and stirred for 1–30 min (depending on the temperature). Soymilk resembles dairy milk in composition, so it can also be fermented by lactic acid-producing bacteria to produce such products as sour soymilk and soy yogurt, and soy milk powder.

In addition, soymilk may be supplemented with sugar to enhance its palatability. These soymilk beverages often contain fruit juice, cocoa, flavors (artificial or natural), stabilizers, and other ingredients to enhance customer acceptance by masking soy flavors.

Feature and Advantage

Main Features:

1. Provide plant design, manufacture, and training service,
2. Complete solution for dairy production, formulated beverages, concentrates, and powders.
3. Plant flexible for like soya milk, almond milk, oat milk, soya protein isolate, and more
4. A perfect partner you can trust for quality and reliability, with years of experience to better support your business

Production Process

SoybeanProduction Flow

• Bean immersion soak.
• Screw transfer (save labor).
• Soybean grinding and separating (Automatic Soybean Twin Grinding & Okara Separating Machine).
• Automatic Soy milk Cooking Machine.
• Blending tank (add sugar, flavor, etc ingredients to meet customer’s demand).
• Twin Filter Machine to remove mainly residues from the expansion of boiled pulp and too large whey sugar particles.
• High-Pressure Soy milk Homogenizer.
• Plate Heat Exchanger/Sterilizer Machine.
• Filling & Sealing Equipment (including Bottle Washing Machine, Filling & Foil Cap Forming Machine, Screw Cap Machine, package as per market demand).
• Retort (cook filled bottle and cooling to prolong shelf time).
• Drying bottle of Soy milk by Air Knife Drying Machine.
• Ink printer to make the batch no and time.
• Final Package (film shrink wrap/carton box).

Specification

Dairy alternative extraction and processing technology for capacity from 500l/h to 10,000 l/hr followed by soy milk grinding, blending, formulation, homogenization, UHT Sterilization, and aseptic brick type packaging systems

Application

Flavored Soymilk/ Soy milk drink/soymilk powder/Oat milk/ Almond milk etc.

FAQ

1:  Q： What’s this plant suitable for?

A： soybean milk, etc dairy process

2:  Q： how about the investment budget?

A： We need to know the end product type and package for the market,  Raw material feeding, capacity for the plant then help u analyze the feasibility.

3:  Q： How about the after-sale service?

A： our own engineer guide and match with the local engineer team.

Inquire

Introduction

1. Yoghurt uses raw milk or milk powder as raw materials, with or without adding ingredients, after sterilizing and fermenting make them into is acid curd-like products. During the shelf life, the end product has corresponding active probiotics.
2. The main strains of lactic acid starter are Streptococcus thermophilus and Lactobacillus bulgaricus.

Yoghurt, sterilizer, CIP cleaning, Yoghurt processing.

Feature and Advantage

Main Features:

1. The capacity of the yoghurt processing line is 1T/D-500T/D for customization to meet the different requirements of clients.
2.  The yoghurt production line mainly includes raw milk pretreatment system (using raw milk as raw material) or milk powder blending system (using milk powder as raw material), yoghurt sterilization system, yoghurt fermentation system, yoghurt filling and packing system, CIP cleaning system, RO water system.
3. The entire production line is made of SUS304 or 316L material, which meets the hygiene requirements of food production.
4. Yoghurt filling, storage, transportation and sales distribution all apply to cold chain technology to keep fresh and good shelf life.

Production Process

Production Flow

1. Raw milk acceptance and storage systemThe raw milk acceptance and storage unit includes a weighting tank, a raw milk receiving tank, a double filter, a plate cooler, raw milk insulation storage tanks, a milk pump and other equipment.

2. Raw milk standardization machineThe content of casein and whey protein in raw milk can increase the hardness of yoghurt and reduce the precipitation of whey.

3. Yoghurt preheating homogenization and pasteurization unitThe milk will be preheated to about 65℃ for homogenization, it helps to improve the stability and consistency of the yoghurt and makes the yoghurt fine in texture and good taste.

4. Yoghurt inoculation fermentation unitThe pasteurized milk needs to be inoculated immediately with the mixed starter of Bulgarian bacteria and Streptococcus thermophilus.

5. Yoghurt cooling and filling unitThe inoculated or fermented yoghurt can be cooled by ice water in a jacketed tank, and then sent to the filling room for filling. The packing forms of yoghurt mainly include porcelain bottles, glass bottles, plastic cups, plastic bags, composite paper boxes, plastic buckets, etc.

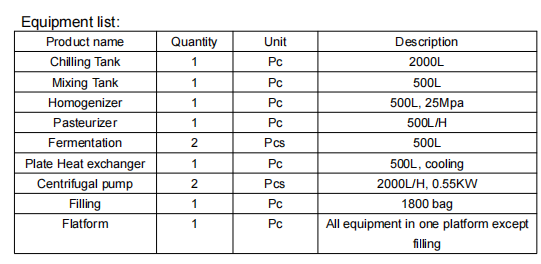

Specification

Application

FAQ

1:  Q: Are you a manufacturer or trader?

A: We are a manufacturer since 2006, our factory address is: No.100, Shiyi east Road, Baoshan District, Shanghai. Our engineers and workers have more than 20 years of work in milk pasteurizer machines and UHT milk sterilization.

2:  Q: How long is the sterilization time?

A: Usually 5 seconds, 15 seconds and 30 seconds. If you have special requirements, 30 minutes are available.

3:  Q: Is the temperature adjustable?

A: Yes, the temperature can be controlled by PLC.

Inquire

Introduction

Egg liquid refers to the poultry eggs after mechanical egg-breaking and shelled, the egg liquid pasteurized or other processing after cold storage consumption of products liquid egg products are mainly divided into whole egg yolk liquid protein liquid salt or sugar special egg liquid, mainly used for bread, cake, moon cake, ice cream, milkshake, instant noodles, and other production.

Feature and Advantage

Main Features:

1. It solves the problem of raw eggs in the food industry and reduces the artificial egg-beating process in food enterprises
2. The pasteurization treatment can effectively control the hidden danger of quality and safety caused by eggshell dirt, broken shells, and bacteria, and improve the safety of the food industry
3. Various special liquid eggs in the supermarket facilitate the cooking operation of consumers, consumers can choose convenient liquid eggs according to their needs
4. The egg with too large egg weight and bad egg shape can be directly used to produce egg liquid

Production Process

Production Flow

1. Egg loading section Egg loading has always been a critical factor in the egg-breaking process. The industry uses several kinds of trays, either new or re-used, made by cartons or other different plastic shapes.

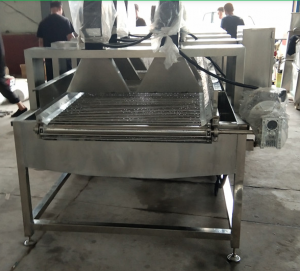

2. Washing line Egg washing equipment is designed to be integrated with breaking equipment and washes eggs. Egg washing lines are built to respect customer cleaning specifications (washing time, sanitizing, drying, egg inspection, etc.)

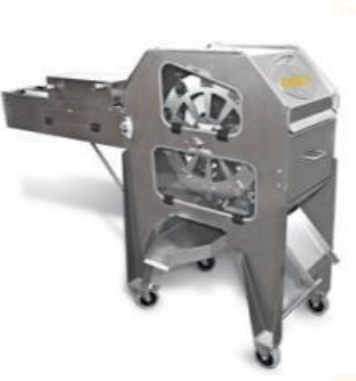

3. Egg breaking section The key component of every egg processing plant is the egg breaker, we offer a complete range of egg breakers with processing capacities from 900 to 225,360 eggs/hour.

4. Egg Pasteurization system

5. Filling machine

Application

Mainly used for bread, cake, moon cake, ice cream, milkshake, instant noodles, etc.

FAQ

1:  Q： What’s this plant suitable for?

A： Egg liquid.

2:  Q： How about the investment budget?

A： We need to know the end product type and package for the market, Raw material feeding, capacity for the plant then help you analyze the feasibility.

3:  Q： How about the after-sale service?

A： our own engineer guide and match with the local engineer team.
