Beverage Production Line

The sugar syrup is prepared first in a high-speed sugar melting tank, and it is added into mixing tank with fruit pulp, water along with other ingredients like flavor, color, preservatives, etc. and later on homogenized to prepare a uniform blend of juice This mixture is pasteurized to remove any microbial growth from it. Uniformly blended juice is then packed in PET bottles/easy-open can/sucking bag/gable top carton box etc.

#

Juice Beverage Production Line

The sugar syrup is prepared first in a high-speed sugar melting tank, and it is added into the mixing tank with fruit pulp, water along with other ingredients like flavor, color, preservatives, etc.

#

Tea Drink Production Line

The tea drinks production line configuration is flexible, and equipment with different functions can be realized according to the customers’ different final product requirements.

$

Nutrition Drink Production Line

It includes high-protein drinks for athletes; quick, healthy and drinkable grain meals for professionals on the go; functional products for babies; and formulations for patients on medically-restricted diets.

$

Water Treatment Plant

Assemble by water tank, water pump, mechanical filter, carbon filter, softener/dosing unit, RO system/UF system, UV light, Ozone generator etc. Widely use for food line like dairy milk, drink water, beverage, beer, tea &coffee process.

Juice Beverage Production Line

Introduction

Dilution System Processing Plant

Fruit Juices are made from fruit pulp/concentrate. The sugar syrup is prepared first in a high-speed sugar melting tank, and it is added into mixing tank with fruit pulp, water along with other ingredients like flavor, color, preservatives, etc. and later on homogenized to prepare a uniform blend of juice This mixture is pasteurized to remove any microbial growth from it. Uniformly blended juice is then packed in PET bottles/easy-open can/sucking bag/gable top carton box etc.

Feature and Advantage

The beverage plant contains the following equipment:

Juice Storage Tank

Ingredient Preparation Tank

Sugar Melting Tank

Filter

Blending tank

De-gassor

Homogenization

Pasteurization/UHT sterilizer

Filling Line

Production Process beverage process plant

Specification

Raw material kind of fresh fruit, Fruit concentration
Final product Fresh juice /fruit puree /beverage
Capacity 500kgs/h, 1-10t/h
Final product package PET/glass bottle, Can, Gable-Top Carton box

Application

—  NFC juice production line (from fresh fruit)
—  Fruit Beverage plant (from fruit concentrate)
— Tea/Coffee drink plant (from tea, coffee, herbal)
— Carbonate beverages production line

Service

  1. Providing professional solutions as a project consultant.
  2. Cooperate with top manufacturers to provide reliable products for customers.
  3. we have our own engineer team focused on mechanical design and solve various mechanical problems.
  4. we have a site engineer team focused on project installation and commissioning.
  5. Each equipment will be tested before the delivery.
  6. Long-term accessories supply.

FAQ

1: Q: What’s this plant suitable for?

A: beverage, tea drink, fruit juice (NFC), coffee drink, etc.

2: Q: how about the investment budget?

A: We need to know the end product type and package for the market, Raw material feeding, capacity for the plant then help u analyze the feasibility.

3:  Q: How about the after-sale service?

A: our own engineer guide and match with the local engineer team.

Juice Bottle Filling Machine

Juice Filling Machine

Beverage Mixing Machine

Post Sterilization

Inquire

Tea Drink Production Line

Introduction

  1. Raw materials can be green tea, black tea, and other teas
  2. The tea drinks production line configuration is flexible, and equipment with different functions can be realized according to the customers’ different final product requirements.
  3. Tea beverages, concentrated tea juice, tea powder, and other products can be produced.

Tea drinks, CIP cleaning system.

Feature, and Advantage

Main Features:

  1. The tea drinks processing line capacity ranges from 500LPH per day to 18000L/H
  2. The modular design of the whole line, combing different processing techniques.
  3. Full automatic machine to ensure the high efficiency of the whole production line.
  4. The whole processing line is equipped with CIP system, equipment and pipelines are easy to clean.

Production Process

Production Flow

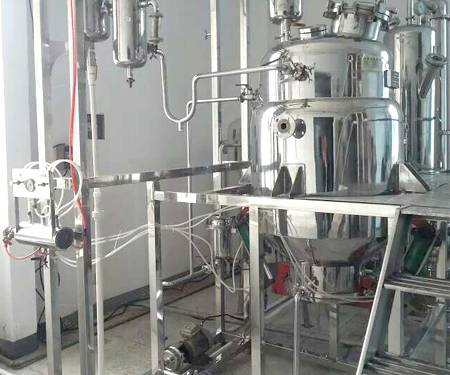

1. Tea leaves extracting tank : SUS304 material jacketed extraction tank with agitator, temperature sensor, stainless steel hanging basket, and electric hoist.

2. Centrifuge separator : This process is also called fine filtration. The main purpose of the centrifugal separator is to remove impurities after tea juice extraction.

3. Mixing tank : The mixing tank will mix purified water, tea extract, citric acid, sodium citrate, sucrose, and flavor in the best proportions.

4. Tea drinks sterilizer : Tea beverage is low-acid beverages with a PH value of above 6.0, so it needs to use high-temperature sterilization.

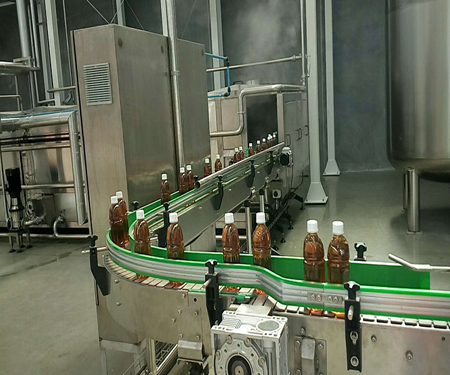

5. Tea drinks filling machine : The sterilizer tea needs to be filled into bottles, tin cans, or cartons instantly, and the filling temperature is more than 89℃.

Application

FAQ

1:  Q: What’s this plant suitable for?

A: beverage, tea drink, fruit juice (NFC), coffee drink, etc

2:  Q: how about the investment budget?

A: We need to know the end product type and package for the market, Raw material feeding, capacity for the plant then help u analyze the feasibility.

3:  Q: How about the after-sale service?

A: our own engineer guide and match with the local engineer team.

Inquire

Nutrition Drink Production Line

Introduction

It includes high-protein drinks for athletes; quick, healthy and drinkable grain meals for professionals on the go; functional products for babies; and formulations for patients on medically-restricted diets. These products must be fresh, tasty, convenient, and look appetizing without compromising quality standards and food safety.

YGT helps you create a diverse range of beverages to meet growing market demands :

  • Plant based milk alternatives, such as oats and nut dairy drinks
  • Flavored milk drinks with fruit juice including fermented drinks
  • Protein sports drinks and Lactose free or low-fat milk drinks
  • Functional beverages for children and baby food

The reasons why choose YGT:

We understand the market

With years of process experience, we can help identify the technology needed to produce innovative beverages to help increase your competitive advantage.

We offer the technology to support

as a solution supplier we offer a wide selection proposal from raw material handling to final beverage package. With proven expertise in mixing and thermal sterilizing processing, we can help you achieve products with:

  • Higher nutritional value
  • Smoother and fresher taste
  • Minimal product loss
  • Lower operational cost

We have comprehensive and sincerely service

Diverse product characteristics demand diverse process technology, we know how to make your ideas work and maximize your market opportunities

  • Quick develop processes and recipes: efficiently reduce your time to market.
  • Expertise to deliver turnkey system solutions to rapidly commercialize your beverage creations
  • Provide whole system of supply chain, from raw material, process equipment and package solution

System composed with

Hot water treatment system

The hot water treatment system is composed of one plate heat exchanger, one hot water tank, water pump and steam valve group. The main function is heating pure RO water to set data like 65°C and supply the hot water to ingredient tank and mixing tank for dissolving and blending. The whole system is made of SUS304/SUS316L material, and the heating method can be steam or electricity.

Blending system

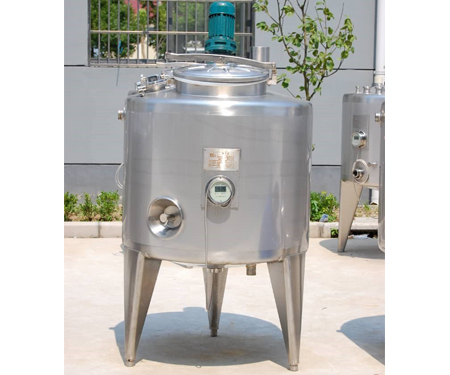

This part content with ingredient prepare tank, mixing tank, pump, filter etc equipment.  The function to blend all particle and liquid to even taste as per different uniform formulation, it is the key point of the whole process.

About the blending tank with different structure, like single layer, double layer with insulation, and three layer with heating/cooling function. Also, the inside mixer with different type as per liquid, like thick liquid by frame type, good flow liquid by blade.

The standard configuration of the tank with inlet and outlet, manhole, rebreather, sample valve, CIP washing ball etc.

Pasteurizer unit

The drink will be heated to 65°C for the homogenizing, the homogenizer can emulsify the particles small, prevent the beverage separate after long time holding, and enhance the stabilizing effect. After homogenizing, further heat the juice to 95°C/1255°C holding for 15-60S for pasteurizing as per different material properties, Structure of Plate type or tubular type sterilizer is chosen according to drink viscosity and filling request.

Filling System

After the juice is pasteurized or sterilized, the drinks should fill into containers immediately to avoid the pollution. The most popular package is PET or glass bottles, some juice processing plants also fill into pouches, tin cans or tetra Pak type carton box, it depends on the Local market consumer consumption habits. According to different filling technological processes, the sterilizing temperature is also different, if hot filling, then Lower temperature pasteurizer will be OK; but if for aseptic filling, then it needs UHT sterilizer.

Post- pasteurizer for package beverage

Pre-pasteurization before filling only kills the pathogenic bacteria, and during the filling process, air may be mixed in, which will cause the bacteria to multiply again. Therefore, after the filling is completed, we need to carry out secondary sterilization on the packaged juice. This pasteurizing process is using 95-98°C hot water to spray on the surface of the bottles or put the pouches into hot water for 20-30 min, then cool down to the room temperature for packing. There are two pasteurizers that can be used, for the bottles and tin cans, we use spray-type pasteurizing cooling tunnel, and for the pouches, we use the water bath-type pasteurizer cooling tunnel.



Ingredient Prepare



Pasteurization



Drink Filling

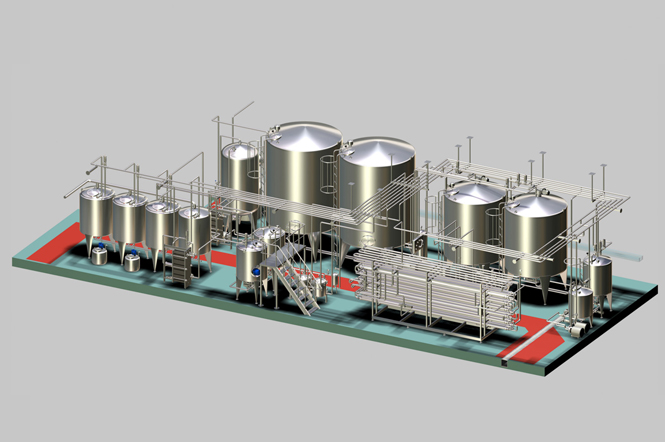

Project Layout

Inquire

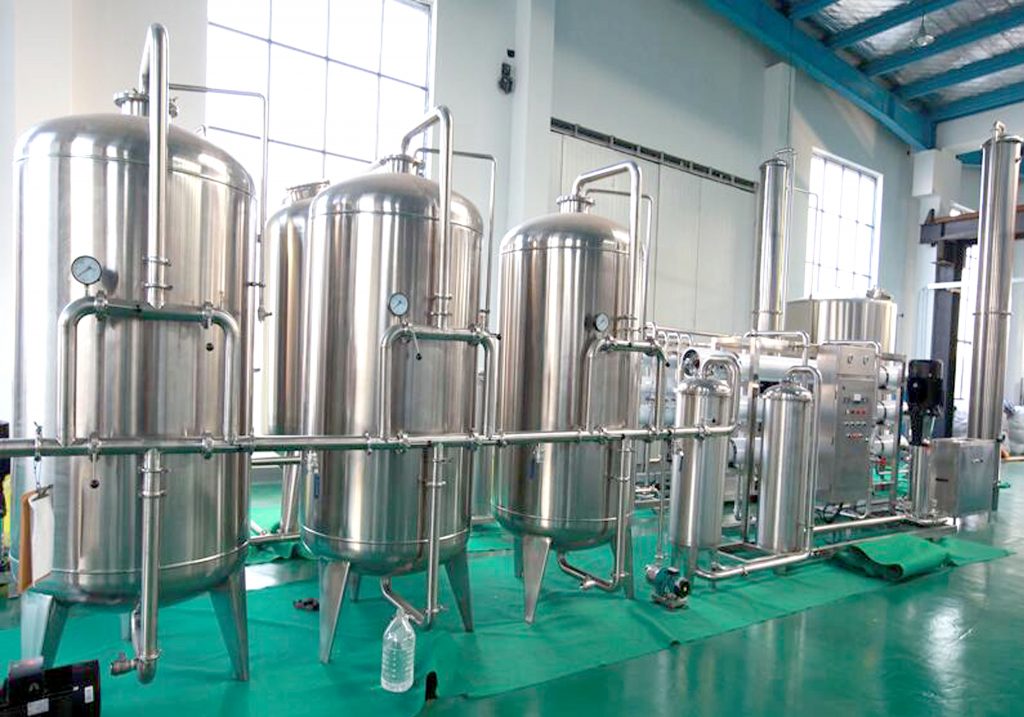

Water Treatment Plant

Water Treatment

Assemble by water tank, water pump, mechanical filter, carbon filter, softener / dosing unit, RO system/UF system, UV light, Ozone generator etc. Widely use for food line like dairy milk, drink water, beverage, beer, tea & coffee process.

Sand Filter : intercept and remove suspended matter effectively, organic matter, colloidal particles, microorganisms in water under certain pressure to reduce water turbidity.

Active Carbon Filter : to filtrate chlorine content in water, had significant effect on odor, organic substances, microorganisms, impurities and certain amount of heavy metals, and can decolorize and deodorize.

Resin Softener : to remove calcium and magnesium ions by sodium ion exchange, to prevent carbonate scale and sulfate scale formed and obtain softening water.

Dosing Unit : to eliminate reverse osmosis membrane scaling

Micro Filter : adopt PP filter membrane which has high filtering precision, less than 0.1um particles.

Reverse Osmosis :composed of reverse osmosis membrane(RO), high pressure pump and washing system to protect the reverse osmosis membrane. It can intercept substances larger than 0.0001 micron. It can effectively intercept all dissolved salts and organic substances with molecular weight greater than 100 and allow water molecules to pass through.

Ultra Filtration :used in mineral water purification, solution separation, concentration, and extraction of useful substances from waste water, waste water purification and reuse.

UV Sterilizer : can kill some kinds of bacteria by UV lamp.

Ozone System : with ozone mixing tower(to mix ozone into water under certain pressure and time) and ozone generator(to generate ozone from air or oxygen under certain pressure ).

Inquire
